Safety Protection Solutions for Small farm and Home Yard

Get Free Sample

Real Testing Datas of HPSFENCE Electric Fence Energizer

Home / Real Testing Datas of HPSFENCE Electric Fence Energizer

Real Testing Datas Display

HPSFENCE provides real testing datas of electric fence energizer, aging test videos, box drop test videos, data detection tables and measured scene displays, which can be very helpful in evaluating product performance and reliability.

We Guarantee

Through the following strict testing and verification, we can guarantee that the electric fence energizer input to output energy conversion rate can reach 60%. some of solar fence energizer is 50%.

It can work stably and reliably in various environments and conditions. Test reports and certification documents, prove the product's performance and quality, ensure the user's safety and effectiveness in use.

Get the Free Sample

HPS FENCE Real Test Datas as Below

Test 1

Engergizer Output Energy Test

Output energy test For example: 12J Real datas

HPS FENCE energizer match 12J standards:

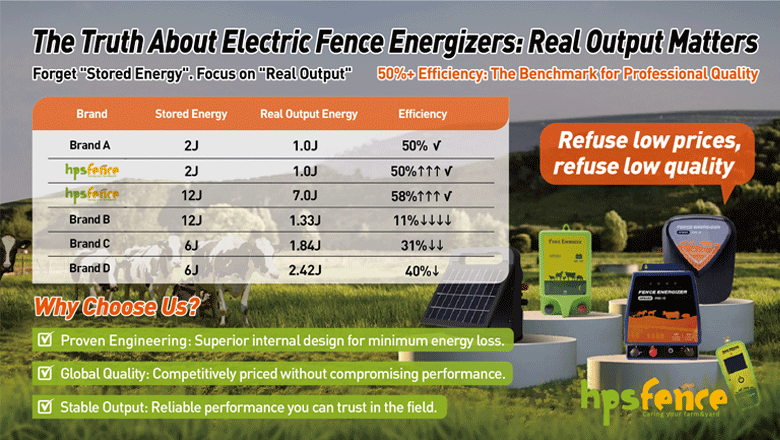

Joule is a unit of energy, indicating energy or power. In the market many fence energizer supplier offer false information. HPSFENCE guarantee the accuracy of the J value of our products, normally our fence energizer input to output energy conversion rate can reach 60%.

Ex：12*0.6=7.2J，12J energizer output energy should reach about 7.2J.

Test Report and Certificate

Voltage and current waveforms photos in actual tests

All current sampling resistors are 0.5 ohms, and all voltages are measured attenuated 2000 times.

Input Parameters

Model	Input voltage(V)	Charging Current(mA)	Duration (ms)	Duration (ms)	Average current (mA)
4.8J-1 level	12	640	300	900	160
4.8J-2 level	12	640	400	700	233
4.8J-3 level	12	640	800	200	512

Output parameters at 100KΩ

Waveform maximum voltage/Tester voltage(KV)	Duration (ms)	Period (S)	Measured power (W)
9/6KV	300	1.2	1.9
12/8KV	300	1.1	2.8
15/12KV	300	1	6.1

Test Video

ROHS report by TUV,Germany

CE certificate by TUV Germany

Test 2

Other Real Test Data of Electric Fence Energizer

The measured data usually includes the following:

Detection sensitivity:the detection accuracy of different types of intrusion.
False alarm rate:the number of false alarms of the system for non-intrusion events.
Response time:the time from detection to intrusion to alarm.
Stability:performance under various environmental conditions.

Test project	Test Conditions	Data performance
Detection sensitivity	Artificially simulated intrusion	99% accuracy
False alarm rate	Small Animal Activities	5% false positive warning rate
Response time	Standard environment	Average 0.5 seconds
Stability	High temperature environment	Normal
Stability	Low temperature environment	Normal
Stability	Strong wind/lightning environment	Normal

Test 3

Electric Fence Energizer Aging Test Datas

Aging test is to verify the reliability of the equipment in long-term use. The HPS electric fence energizer is operated continuously for a long time in the factory to ensure the long-term use of the product.

Test 4

Electric Fence Energizer Box-Drop Test Video

Ensure durability and reliability

Drop box test is a common product testing method used to evaluate the product's ability to withstand shock and vibration during transportation, installation and daily use. Through the drop box test, it can ensure that the electric fence energizer maintains good working condition under various conditions, ensuring the user experience and the durability of the equipment.

Multiple drop tests at different heights and angles
Appearance and functional inspection of the device after the drop

Electric Fence Energizer Recommend

Battery (DC) Fence Energizers

6-volt or 12-volt battery
0.25J-12J
2.5-120 KM
Weather-resistant case

Combination(AC/DC) Fence Energizers

Dual Power Source
Flexible power supply
Extremely adaptable
Can either be plugged directly int 110V-240V AC outlet or connected to a 12V DC battery

Plug-in (AC) Fence Energizers

Permanent Fencing
Large Areas
Stable Power Source
Least cost to purchase and operate per joule of output

Solar Powered Fence Energizers

0.25 to 1.0 joules
Eco-Friendly and Renewable
Ideal for Remote Locations
solar energizers are sized to provide reserve energy for a minimum of 3 sunless days
